WTB S100 connectors
I have a need for two S100 backplane connectors. Drop me a note off-list if you have two to spare. Thanks. Mike Loewen mloewen@cpumagic.scol.pa.us Old Technology http://q7.neurotica.com/Oldtech/
Systems Glitch wrote:
I have a need for two S100 backplane connectors. Drop me a note off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
Ditto. I have some that are NOT correct for IMSAI, MITS or Cromemco (BlitzBus anyway). Bill S.
On Thu, 21 Jul 2016, Systems Glitch via vcf-midatlantic wrote:
I have a need for two S100 backplane connectors. Drop me a note off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
It's hard to get an exact measurement, but my digital caliper says spacing on center is somewhere between 0.285" and 0.290". These are for an SD Systems Z80 Starter Kit board. Mike Loewen mloewen@cpumagic.scol.pa.us Old Technology http://q7.neurotica.com/Oldtech/
Mike Loewen wrote:
I have a need for two S100 backplane connectors. Drop me a note off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
It's hard to get an exact measurement

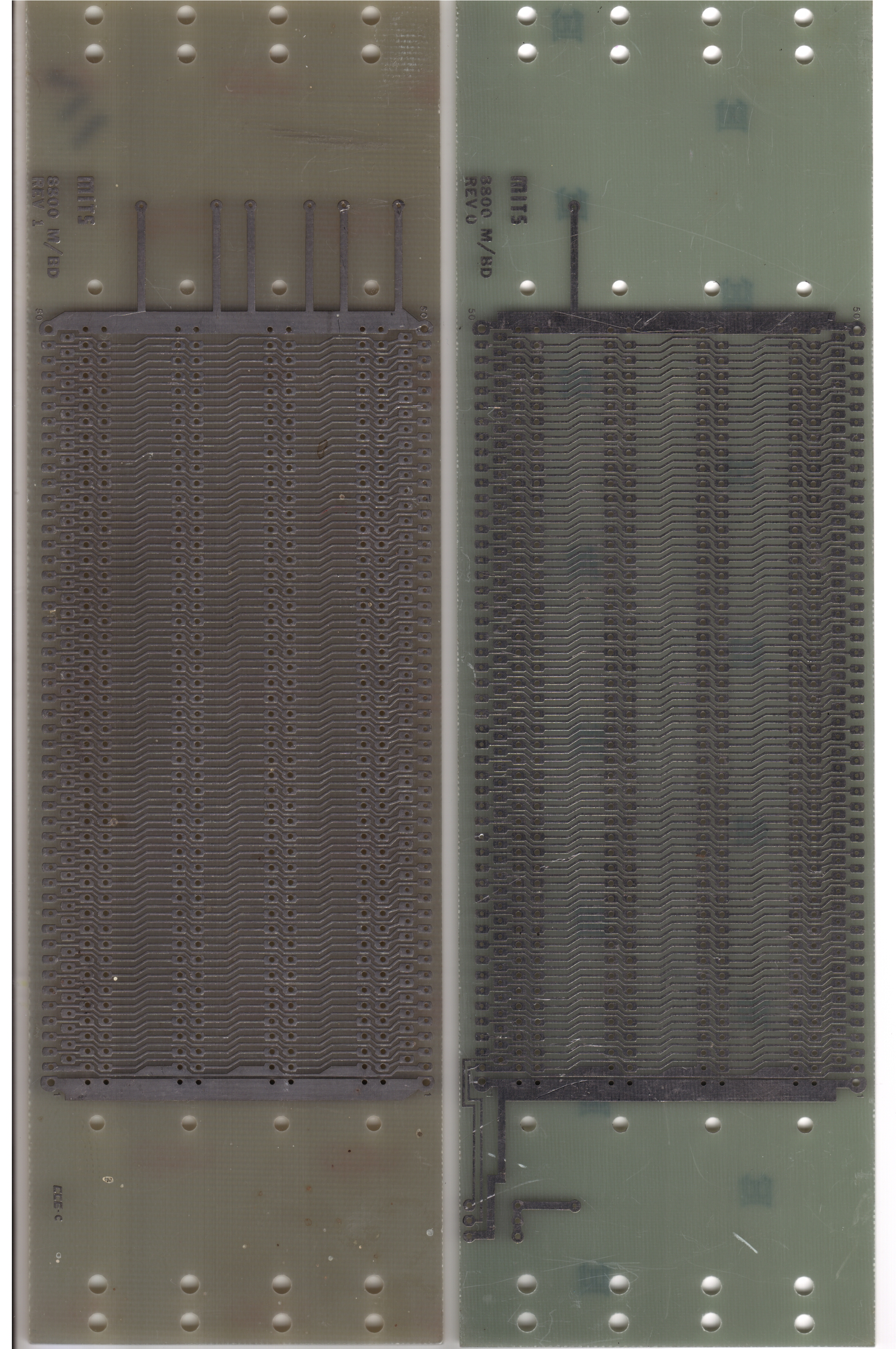

Yes, it is. I don't have mine at hand, but does it look more like this: http://www.vintage-computer.com/images/mits4slotmbbot.jpg (Narrow spacing) Or this: http://vintagecomputer.net/Morrow/view_power_voltage_labels.JPG (Wide spacing) Bill S.
On Thu, 21 Jul 2016, Mike Loewen via vcf-midatlantic wrote:
On Thu, 21 Jul 2016, Systems Glitch via vcf-midatlantic wrote:
I have a need for two S100 backplane connectors. Drop me a note off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
It's hard to get an exact measurement, but my digital caliper says spacing on center is somewhere between 0.285" and 0.290". These are for an SD Systems Z80 Starter Kit board.
Apparently I don't know how to read a caliper. It's more like 0.250". Mike Loewen mloewen@cpumagic.scol.pa.us Old Technology http://q7.neurotica.com/Oldtech/
On Thu, Jul 21, 2016 at 5:55 PM, Mike Loewen via vcf-midatlantic < vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Mike Loewen via vcf-midatlantic wrote:
On Thu, 21 Jul 2016, Systems Glitch via vcf-midatlantic wrote:
I have a need for two S100 backplane connectors. Drop me a note
off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
It's hard to get an exact measurement, but my digital caliper says spacing on center is somewhere between 0.285" and 0.290". These are for an SD Systems Z80 Starter Kit board.
Apparently I don't know how to read a caliper. It's more like 0.250".
There are two different Row spacings out in the wild. As Bill showed here already. I recall the wider spec was originally intended for wire-wrap backplanes, but they also sold the solder pin variety. This place has the the skinny variety . It's become a popular source for the retro projects in the S-100 group. I used them to make another of their retro backplane projects . Th is say s it's 0.24" Row spacing , only $3.95 http://anchor-electronics.com/product/100-pin-125-inch-card-edge-connector/ Dan
On Thu, 21 Jul 2016, Dan Roganti wrote:
On Thu, Jul 21, 2016 at 5:55 PM, Mike Loewen via vcf-midatlantic < vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Mike Loewen via vcf-midatlantic wrote:
On Thu, 21 Jul 2016, Systems Glitch via vcf-midatlantic wrote:
I have a need for two S100 backplane connectors. Drop me a note
off-list if you have two to spare. Thanks.
What spacing? Obviously 0.125" between contacts, but what about across the other way?
It's hard to get an exact measurement, but my digital caliper says spacing on center is somewhere between 0.285" and 0.290". These are for an SD Systems Z80 Starter Kit board.
Apparently I don't know how to read a caliper. It's more like 0.250".
?There are two different Row spacings out in the wild. As Bill showed here already. I recall the wider spec was originally intended for wire-wrap backplanes, but they also sold the solder pin variety. This place has the ? the skinny variety . It's become a popular source for the retro projects in the S-100 group. ? ? I used them to make another ?of their retro ? backplane ? projects? . Th ?is? say ?s? it's 0.24" Row spacing ?, only $3.95? http://anchor-electronics.com/product/100-pin-125-inch-card-edge-connector/
Thanks Dan, but I've determined that it's definitely the wider (0.250") size. Mike Loewen mloewen@cpumagic.scol.pa.us Old Technology http://q7.neurotica.com/Oldtech/
On Thu, Jul 21, 2016 at 8:22 PM, Mike Loewen via vcf-midatlantic < vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Dan Roganti wrote:
There are two different Row spacings out in the wild.
As Bill showed here already. I recall the wider spec was originally intended for wire-wrap backplanes, but they also sold the solder pin variety. This place has the the skinny variety . It's become a popular source for the retro projects in the S-100 group. I used them to make another of their retro backplane projects. This says it's 0.24" Row spacing, only $3.95?
http://anchor-electronics.com/product/100-pin-125-inch-card-edge-connector/
Thanks Dan, but I've determined that it's definitely the wider (0.250") size.
I thought the wider row spacing was even more. I don't have this type here, maybe Bill can measure those he bought the other year. and I think that was a typo on Anchor Electronics, either 0.24" or 0.25" was the skinny variety Dan
On Thu, 21 Jul 2016, Dan Roganti wrote:
On Thu, Jul 21, 2016 at 8:22 PM, Mike Loewen via vcf-midatlantic < vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Dan Roganti wrote:
??
There are two different Row spacings out in the wild.
As Bill showed here already. I recall the wider spec was originally intended for wire-wrap backplanes, but they also sold the solder pin variety. This place has the the skinny variety ?.? It's become a popular source for the retro projects in the S-100 group. ? ? I used them to make another ? ? of their retro ? ? backplane projects. This ? ? says ? ? it's 0.24" Row spacing, only $3.95?
http://anchor-electronics.com/product/100-pin-125-inch-card-edge-connector/
Thanks Dan, but I've determined that it's definitely the wider (0.250") size.
?I thought the wider row spacing was ?even more. I don't have this type here, maybe Bill can measure those he bought the other year. and I think that was a typo on Anchor Electronics, either 0.24" or 0.25" was the skinny variety Dan
According to this, Altair uses 0.140" row spacing and IMSAI uses 0.250" row spacing: http://www.s100computers.com/N8VEM_Archive/msg01180.html Mike Loewen mloewen@cpumagic.scol.pa.us Old Technology http://q7.neurotica.com/Oldtech/
On Thu, Jul 21, 2016 at 8:55 PM, Mike Loewen via vcf-midatlantic < vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Dan Roganti wrote:
On Thu, Jul 21, 2016 at 8:22 PM, Mike Loewen via vcf-midatlantic <
vcf-midatlantic@lists.vintagecomputerfederation.org> wrote:
On Thu, 21 Jul 2016, Dan Roganti wrote:
??
There are two different Row spacings out in the wild.
As Bill showed here already. I recall the wider spec was originally intended for wire-wrap backplanes, but they also sold the solder pin variety. This place has the the skinny variety ?.? It's become a popular source for the retro projects in the S-100 group. ? ? I used them to make another ? ? of their retro ? ? backplane projects. This ? ? says ? ? it's 0.24" Row spacing, only $3.95?
http://anchor-electronics.com/product/100-pin-125-inch-card-edge-connector/
Thanks Dan, but I've determined that it's definitely the wider (0.250") size.
?I thought the wider row spacing was ?even more.
I don't have this type here, maybe Bill can measure those he bought the other year. and I think that was a typo on Anchor Electronics, either 0.24" or 0.25" was the skinny variety Dan
According to this, Altair uses 0.140" row spacing and IMSAI uses 0.250" row spacing:
oh yea, I should've looked inside my 680 again and noticed the difference :)
